To do AFTER hanging engine

hydroguy2 · Post by **hydroguy2** » Tue Dec 22, 2009 3:02 pm

First they say size doesn't matter, so hopefully my engine is big enough. One thing I can say: My engine is well hung. Took all of 20 minutes, the first 3 bolts took <10minutes by myself, then my son got back and helped me wiggle/jiggle the last bolt in place.

Now what's next?

1. prop
2. cowl
3. baffles
4. exhaust
5. figure out the cabling(might move to #1 or 2)

Post by **bullojm1** » Tue Dec 22, 2009 4:09 pm

Brian,

First off....CONGRATS on hanging your engine!

Now that you have done the easy part, welcome to working on the hard stuff. there is a dependency on how everything goes together now. The prop has to be hung to get the spacing for the cowl right. The cowl needs to be installed in order for baffles.

Exhaust needs to be mounted before you can run any cables. In fact, I would mount the exhaust, then run the fuel/oil/pressure lines, and then the cabling. Basically start with the stuff that's the toughest to bend/move (i.e. exhaust) and move to more flexible tubes from there. Finish it off with wires.

cjensen · Post by **cjensen** » Tue Dec 22, 2009 4:22 pm

Yep...what Mike said.

Very cool Brian!! It's such a cool thing to do, hanging the engine!

hydroguy2 · Post by **hydroguy2** » Tue Dec 22, 2009 5:47 pm

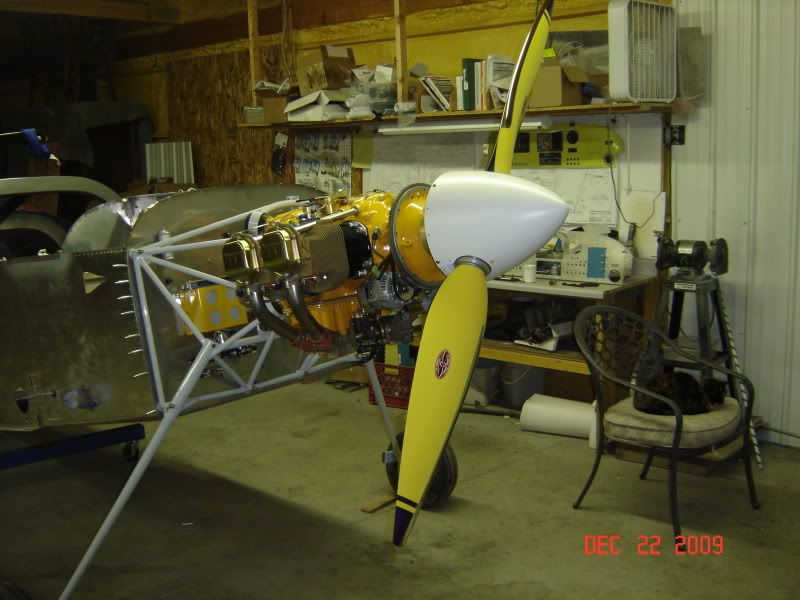

OK that was easy. <1hr by myself including spinner

At this rate maybe I'll have the cowl complete by christmas.....ok maybe not. Gots to do some family stuff for the next week or so

hydroguy2 · Post by **hydroguy2** » Tue Dec 22, 2009 6:31 pm

Had a friend mention I should NOT do the cowl until the fwd top skin and firewall is riveted in place. I thought most folks do that skin last.

Should I run my forward wiring and get all the panel wires in place, rivet the top skin before I get carried away with the cowl?

Post by **bullojm1** » Tue Dec 22, 2009 7:14 pm

hydroguy2 wrote:Had a friend mention I should NOT do the cowl until the fwd top skin and firewall is riveted in place. I thought most folks do that skin last.

Should I run my forward wiring and get all the panel wires in place, rivet the top skin before I get carried away with the cowl?

That forward top skin is almost always saved to last. Why did your friend recommend you wait until that skin is riveted? If thats the case, then you will pretty much have to do everything (wiring, canopy, control, etc..) before you can do the cowl. I haven't riveted mine on yet (give me 4 weeks!), so I can't speak out of experience on this matter.

Wicked Stick · Post by **Wicked Stick** » Tue Dec 22, 2009 9:40 pm

Looking good so far, keep up the great progress.

Mounting everything that "has" to go where it bolts/mounts is priority to attach first; Exhaust, etc. (like everyone else suggested) Then, you can move on to hoses, ignition wires, then just plain old wiring last after the baffles are done.

I have my cowl fitted, baffles about 75% done, and all of the FWF wiring finished. (hooked up the EGT & CHT probes and wires last night). It was cool to take a heat gun to the surrounding area and one by one verify tempature readings on my AF3500 display.

Oil door, front center baffle and the FAB intake are about what's left for me FWF. I suspect the FAB will need to be cut and modified, so that will take some time

.

captain_john · Post by **captain_john** » Tue Dec 22, 2009 9:54 pm

Brian, That looks just simply AWESOME!

Sounds like we all have been actively tinkering along!

I was dabbling with fuel lines and battery box stuff tonight...

CJ

Bob Barrett · Post by **Bob Barrett** » Wed Dec 23, 2009 9:06 pm

Once the engine is hung you need the exhaust pipes, then the prop, FAB, the baffeling, Cowling, wiring and all engine connections,and the very last thing you do is the top fuselage skin!

Post by **Spike** » Thu Dec 24, 2009 8:15 am

Wow dude that is slick as snot!

Spike

hydroguy2 · Post by **hydroguy2** » Thu Dec 24, 2009 11:05 am

Spike wrote:Wow dude that is slick as snot!

Spike

wait until you see the paint job we have for it....sun glasses will be mandatory

Post by **Spike** » Fri Dec 25, 2009 7:46 am

Any sneak previews?

Spike

hydroguy2 · Post by **hydroguy2** » Fri Dec 25, 2009 9:03 am

not yet. The grandkids gave me the colors, then I picked a few patterns I liked and Chad made up some drawings. Later today at the kids house, I'm going to get a group vote and pick the favorite. The drawings aren't the final scheme, but should be reasonably close.

Chad, Thanks a bunch. I took one of the pics to the guy helping me paint. As soon as he saw it, he said. "oh man We're doing that!" He got real excited.
The last plane he painted was a '46 Pacer and they painted it: "Taliban Tan"<--- his words.

cjensen · Post by **cjensen** » Fri Dec 25, 2009 12:54 pm

Can't wait to see which one they pick!

hydroguy2 · Post by **hydroguy2** » Fri Dec 25, 2009 11:58 pm

Chad, it's a tie.

So I won't be revealing the pic just yet.

Post by **Spike** » Sat Dec 26, 2009 10:12 am

hydroguy2 wrote:Chad, it's a tie.

So I won't be revealing the pic just yet.

*yawn*

Thats a cheesy excuse.

Why not let us help you decide? We would love to be included!

Spike

hydroguy2 · Post by **hydroguy2** » Sat Dec 26, 2009 10:44 am

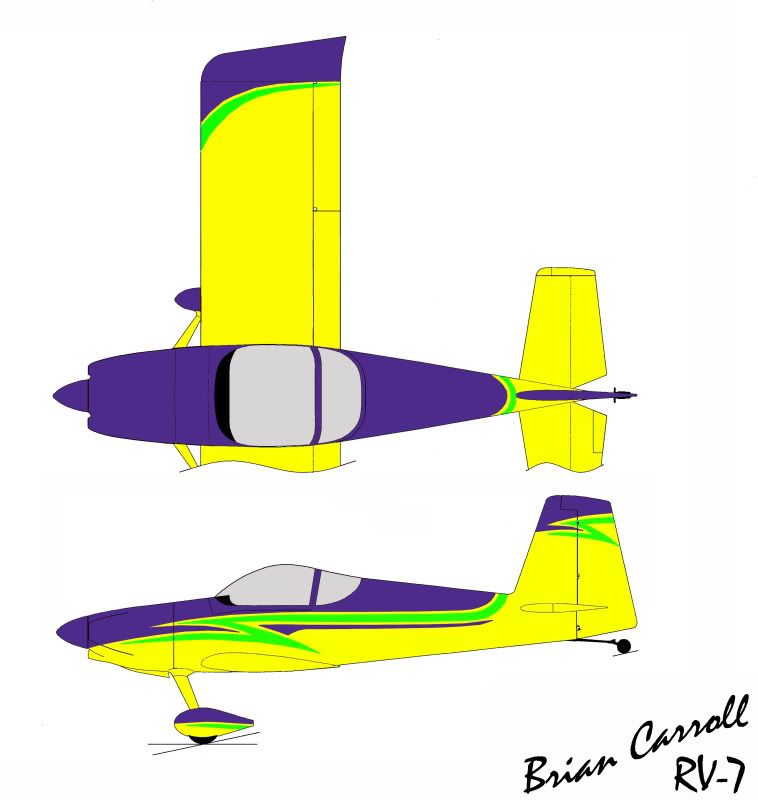

The colors will be a little different than these drawings, but gives you an idea.
The yellow will be exactly like the prop yellow. and the purple will be more like the Vikings Football helmet. Anyway, I gave the grandkids the privilege of selecting the colors. Their request was Yellow, Purple and Bright.

We like these lines.

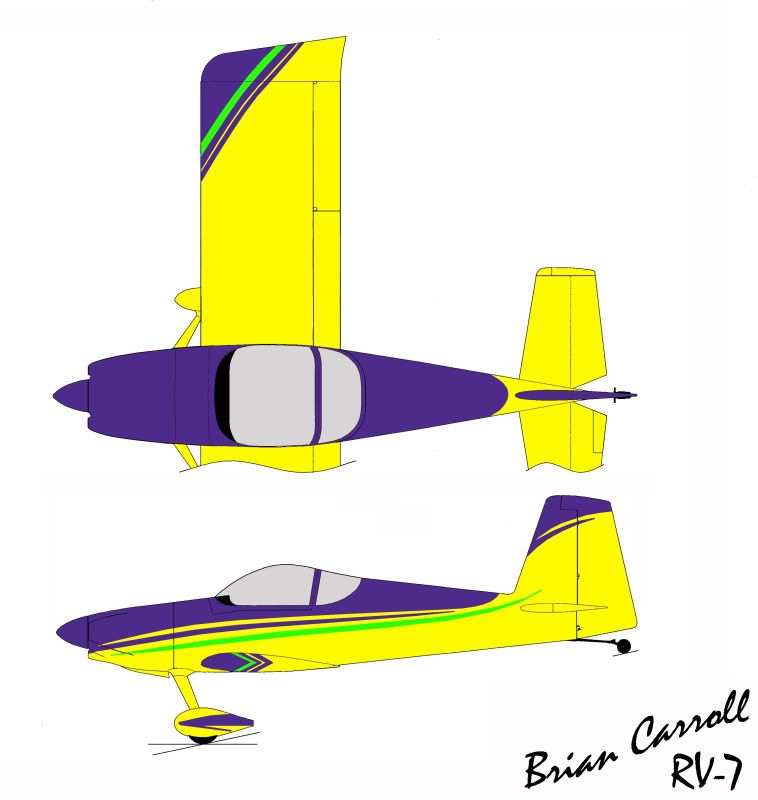

Tied in votes was this one

granddaughter fav was Purple purple purple, eeee....guess you had to be there to really experience the squeal

Post by **Spike** » Sat Dec 26, 2009 1:47 pm

Wow those are great!! I vote for the first one. Very nice lines. Patti says that she votes for the first one as well.

Spike

hydroguy2 · Post by **hydroguy2** » Sat Dec 26, 2009 4:29 pm

I'm sure some folks won't like any of them. Too flashy or too busy for some people. Others like military schemes or checkered tails. We wanted something different and these are different enough for us. final scheme is yet to be determined, but you get the idea.

I figure I won't need wigwag lights to be seen.

cjensen · Post by **cjensen** » Sat Dec 26, 2009 8:39 pm

BTW...if anyone has a scheme in mind, and would like to send me your ideas, I enjoy putting them together in Photoshop as I did for Brian...lemme know!
