Big Day....Wings Mated

Post by **bullojm1** » Sat Mar 01, 2008 3:03 pm

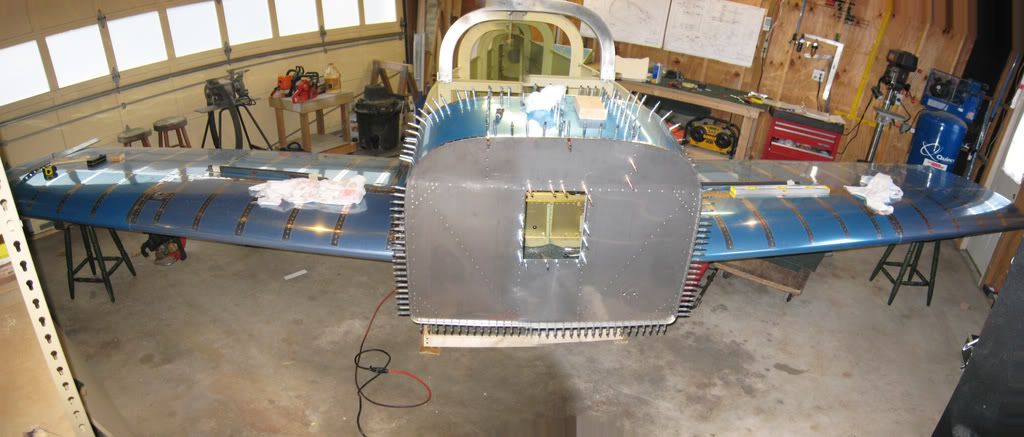

I had anticipated the wings would take a while to mount to the fuselage. My dad and I were able to get the fuselage turned and both wings mounted in under an hour! I think it took me longer to figure out how to merge the following panoramic picture than it did to mate the wings! Woo Hoo!

cjensen · Post by **cjensen** » Sat Mar 01, 2008 4:17 pm

SWEET!! Looks awsome Mike!!! Congrats...that is a cool feeling!!

captain_john · Post by **captain_john** » Sat Mar 01, 2008 4:17 pm

Nice Mike!

You will be flying in no time!

CJ

Post by **Spike** » Sat Mar 01, 2008 5:00 pm

Very nice!!

Brantel · Post by **Brantel** » Sat Mar 01, 2008 5:06 pm

Must be a good weekend for mating wings! I got mine on today as well!

Great job!

chappyd · Post by **chappyd** » Sat Mar 01, 2008 7:21 pm

Feels good, doesn't it

. I did mine 2 weekends ago. I love going downstairs to work on my "Airplane" now. Now I'm getting a lot of exercise because the tool I need is always on the other side of the plane, and with the ailerons on I can't get by on one side, lol.

Definitely cool.

TomC · Post by **TomC** » Sat Mar 01, 2008 9:38 pm

Way to go! Its amazing how it all comes together.

Good Luck!

JohnR · Post by **JohnR** » Sat Mar 01, 2008 9:43 pm

Looks great! Looks like several people in the same area of the build. Fun!

Wicked Stick · Post by **Wicked Stick** » Sun Mar 02, 2008 10:12 am

Nice going Mike !!! Wow, way to go Brantel too !!

Guess I didn't get the wing mounting memo C.J.
otherwise I would have had you help me do mine this weekend too

captain_john · Post by **captain_john** » Sun Mar 02, 2008 12:06 pm

NO!

Wing MOUNTING is different than wing MATING!

Both can be sometimes ugly to watch if not done correctly!

CJ

Wicked Stick · Post by **Wicked Stick** » Sun Mar 02, 2008 1:31 pm

LOL, Agreed.

jim_geo · Post by **jim_geo** » Sun Mar 02, 2008 2:53 pm

Looking good. Congrats that's a big step done.

dons · Post by **dons** » Mon Mar 03, 2008 12:29 pm

Looking nice Mike, must be nice to have a shop big enough to be able to do that. Glad it went smoother than expected, that is always a great bonus.

Speed3Guy · Post by **Speed3Guy** » Mon Mar 03, 2008 12:42 pm

Yup, that's a big day! Congrats!

Guy

Post by **bullojm1** » Mon Mar 03, 2008 2:54 pm

dons wrote: .....must be nice to have a shop big enough to be able to do that.

Man, it is so close to not fitting. One of the wingtips is smack against the back wall, the other one I have about 6" to squeeze by it. What really sucks is to work on the left wing I need to duck under the aft fuselage. That gets REAL old after a while. Also, I realized all the tools I need for whatever task I am working on are always on the other side of the fuse!

But thanks for all the congratulations. I got the sweep out of both wings. That sucked because I needed to unbolt the wings to trim the fuselage part of the aft spar. The forward portion of the spar was interfering with the root wing. I got my incidence down to 0.0 degrees also.

Tonight is the "Big Drill" I am looking golden with edge distances. My only fret is to make sure the drill is perpendicular to the rear spar.

dons · Post by **dons** » Mon Mar 03, 2008 3:10 pm

So, no wingtips as long as the door is closed

Good luck with the 'big drill', sounds like you have done some really good prep work. Shop size is all relative, I have to stack my belt sander/grinder/bandsaw because there just isn't enough floor space to have them sitting side by side. I am forever moving things around so I can make enough space to work on something, but at least I'm working on the project and that's what counts in my book.

BSwayze · Post by **BSwayze** » Mon Mar 03, 2008 10:40 pm

Wow, Mike,

Way to go! Congratulations! I'm almost finished with my right fuel tank, and my fuse kit is on order. I don't think I'll get mine all in the shop like you did. How big is your shop? Mine is a "standard" 20 x 20 2-car garage. I may have to wait for nice weather and push it out on the driveway when that big day comes for me. But that's a ways off.

Bruce

Post by **bullojm1** » Mon Mar 03, 2008 11:22 pm

BSwayze wrote:Wow, Mike,

Way to go! Congratulations! I'm almost finished with my right fuel tank, and my fuse kit is on order. I don't think I'll get mine all in the shop like you did. How big is your shop? Mine is a "standard" 20 x 20 2-car garage. I may have to wait for nice weather and push it out on the driveway when that big day comes for me. But that's a ways off.

Bruce

Bruce-

My garage is 22' long by 20' wide. What I did was make a cutout of my plane and garage out of graph paper. That made it clear as day how the plane needed to go. If you are interested, I do have a cutout of the RV-7 fuse that I could mail you. That would make it REAL easy for you to graph out your garage and see what works. If interested, email me at mike@rvplane.com with your address.

Post by **bullojm1** » Mon Mar 03, 2008 11:53 pm

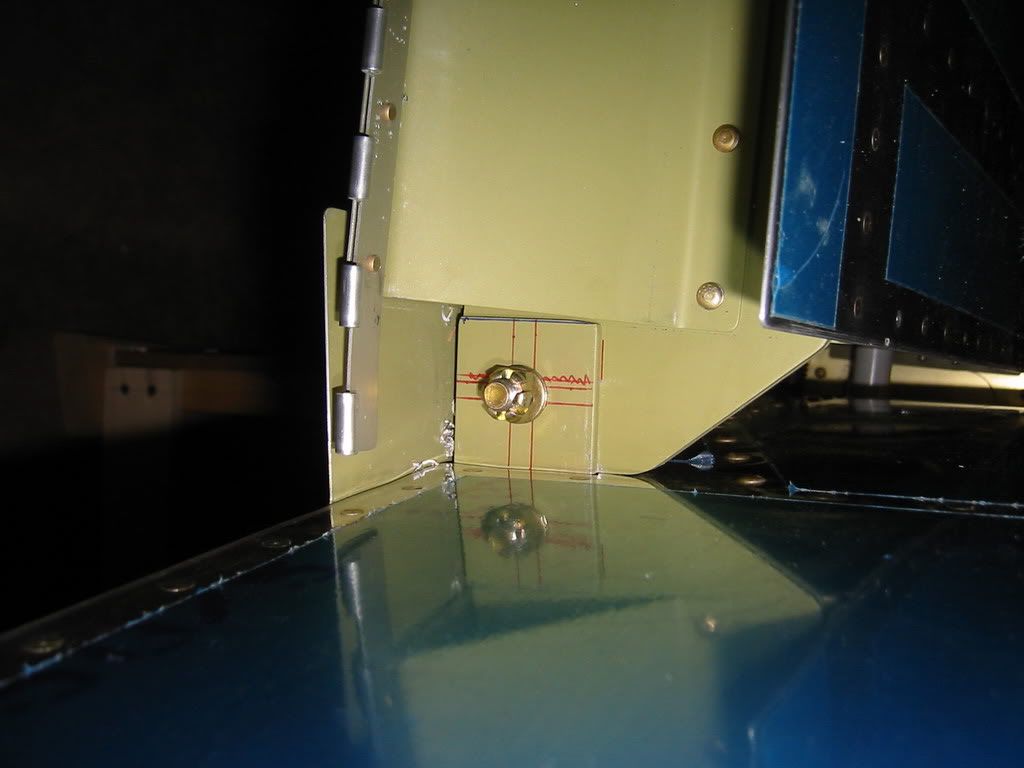

The mating of the wings was WAY easier than drilling this one stinkin' hole. Getting the incidence angle and sweep took FOREVER to nail. Man, I was all stressed out drilling these, but in the end they came out GREAT. It is such a relief this is done. I guess the last challenge of the project is cutting the plastic hut!

Bob Barrett · Post by **Bob Barrett** » Tue Mar 04, 2008 8:31 pm

Cutting the plastic hut is a challenge all right but there are several after that. Fitting the cowling, then fitting the baffeling, etc. are not fun jobs either.
