10R12 Screw

itisgood · Post by **itisgood** » Tue Apr 05, 2011 1:19 pm

On the side of the RV7A is a screw that goes through the skin and into the gear leg.
My question, do I dimple this screw or countersink?
It seems to me to countersink through the skin(to thin) is not the way to go.
But, to dimple means that I must countersink the steel part of the gear leg.
What is the appropriate method.

Thanks for your help.
Dave

Post by **bullojm1** » Wed Apr 06, 2011 8:08 am

Dave,

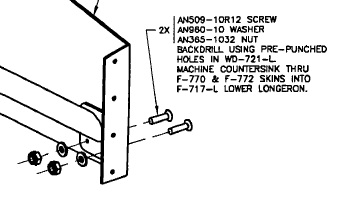

Take a look at drawing 34A. It looks like the lower longeron is in-between the skin and the gear leg fairing. The instructions seem to say to countersink the skin and the lower longeron together.

Post by **Spike** » Wed Apr 06, 2011 8:09 am

I believe that most of us are countersinking this. If I remember correctly there will be some aluminum structure between the skin and the steel gear weldement.

Spike

dons · Post by **dons** » Wed Apr 06, 2011 2:25 pm

If the above two is what you are asking about, I just countersunk them, and the one beside it.

itisgood · Post by **itisgood** » Wed Apr 06, 2011 6:49 pm

After the input of my Riverbanger friends, I must say that I appreciate all your comments.
It seemed to me that to countersink was not the way, because the skin is just to thin. but I see it can be done and it looks good.
Cheers,
Dave

PS My finish kit came today!!
too bad I am not ready for it--hopefully soon.

bruceh · Post by **bruceh** » Thu Apr 07, 2011 9:53 am

Same deal on the -9. Countersink these screws.

BSwayze · Post by **BSwayze** » Thu Apr 14, 2011 11:16 am

I countersunk mine, too. Countersinking a thin skin is okay as long as the underlying longeron, or whatever, is thicker metal.

itisgood · Post by **itisgood** » Thu Apr 14, 2011 4:50 pm

I countersunk the holes they turned out nice, thanks guys for the quick response.
I started today to rivet the skin on the fuselage. 220 rivets, not half way done

Dave
