part number for vert stab hinge

gsimatos · Post by **gsimatos** » Thu Feb 01, 2007 11:46 pm

I have my wings and feus coming to me next week to Vancouver. I want to add a part i wrecked to the order however I am at the other end of the country not near my plans and rv stuff. Would anyone know the number for the angled steel powder coated lowest hinge bracket on the vert stab. There are four riveted on in an upper pair and lower pair and of course I managed to miss drill the lowest one. If any oine has their plans handy and can give me that number that would be great G

dons · Post by **dons** » Fri Feb 02, 2007 12:33 pm

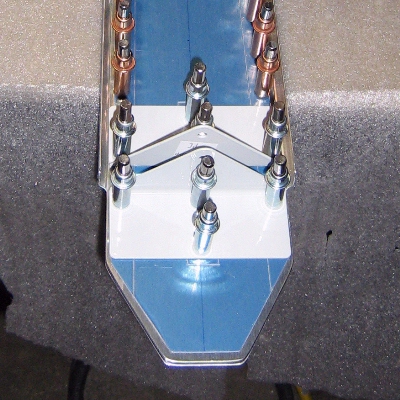

I think you are asking about the VS-410PP. There are two of them at the bottom with six holes that attach to the VS-808PP spar doubler and VS-803PP rear spare, pictures below.

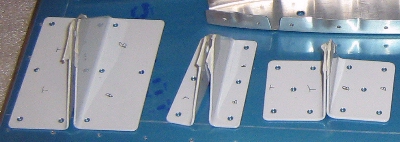

The middle pair are VS-411PP and have 3 holes each to attach to the doubler/spare, while the upper pair are VS-412PP and have 5 holes each going to just the rear spar.

cjensen · Post by **cjensen** » Fri Feb 02, 2007 12:44 pm

To compliment Don's pics of the real thing, here's a crop of the plans...

gsimatos · Post by **gsimatos** » Fri Feb 02, 2007 1:11 pm

You guys are fantastic. How the heck did you put all these photos and diagrams together so quick??I am just off the phone with the Vans folks and ordered up the VS 410 PP to put in with my wings and fueselage coming next week. Yahoo, now just gotta convince my wife the big pile of parts in the shop is a new stereo. Thanks again very much guys G

dons · Post by **dons** » Fri Feb 02, 2007 1:48 pm

gsimatos wrote:You guys are fantastic. How the heck did you put all these photos and diagrams together so quick??

We're rivetbangers

Thanks Chad, my scanner is at home, I'm at work, working

.

cjensen · Post by **cjensen** » Fri Feb 02, 2007 3:13 pm

No problem at all!

Oh, and I'm at work too, but not working.

Rockyjs · Post by **Rockyjs** » Wed Feb 07, 2007 11:39 pm

CJ, Any chance of getting a copy of the drawings? I have the instructions scanned into my computer that I keep at home, but my drawings are with the aircraft 1 hour away.
